Products

2.2 Converter DC/DC 12/24 V, with high current wires and "crocodiles", length 1 m

Aluminum hermetic converter unit with crocodile clips with polarity designation and high-current 1 m long wires for connecting them to a 12-volt car battery. Designed to power field X-ray apparatus from any 12 V batteries, including automotive

2.1 Converter AC/DC 220/24V with AC cable with Europlug

Converter AC/DC 220/24V with AC cable with Europlug. Cable length 2 m.

2.3 Converter 24/31 V with high-current wires with a length of 1 m with "crocodiles"

Converter 24/31 V with high-current wires with a length of 1 m with "crocodiles"

2.4 Autonomous power supply (APS-1) with built-in charger (12 Ah)

The autonomous power supply (IAP-1) consists of 2x lead-acid maintenance-free 12 volt rechargeable batteries with a capacity of 12 Ah with a built-in charger, equipped with a 0.5 m power cable.
There are no restrictions on transportation by air, rail and road.

2.5 Autonomous power source (APS-2) with built-in charger (18 Ah)

The autonomous power supply (IAP-2) consists of 2x lead-acid maintenance-free 12 volt rechargeable batteries with a capacity of 18 Ah with a built-in charger, equipped with a 0.5 m power cable.
There are no restrictions on transportation by air, rail and road.

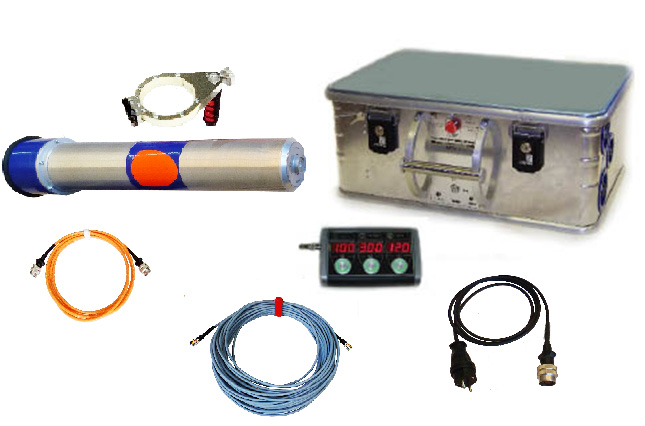

1.1 Аппарат рентгеновский "0,3 СБК 160" с универсальным питанием, в пылевлагозащитном алюминиевом кейсе

Аанодное напряжение	50 - 160 кВ
Анодный ток	0,1 - 3 мА
Диаграмма излучения - коническая с углами при вершине	100° × 80°
Размер фокусного пятна	0,8 х 0,8 мм
Питание	~ 220 В, - 24 В
Масса моноблока	5,5 кг

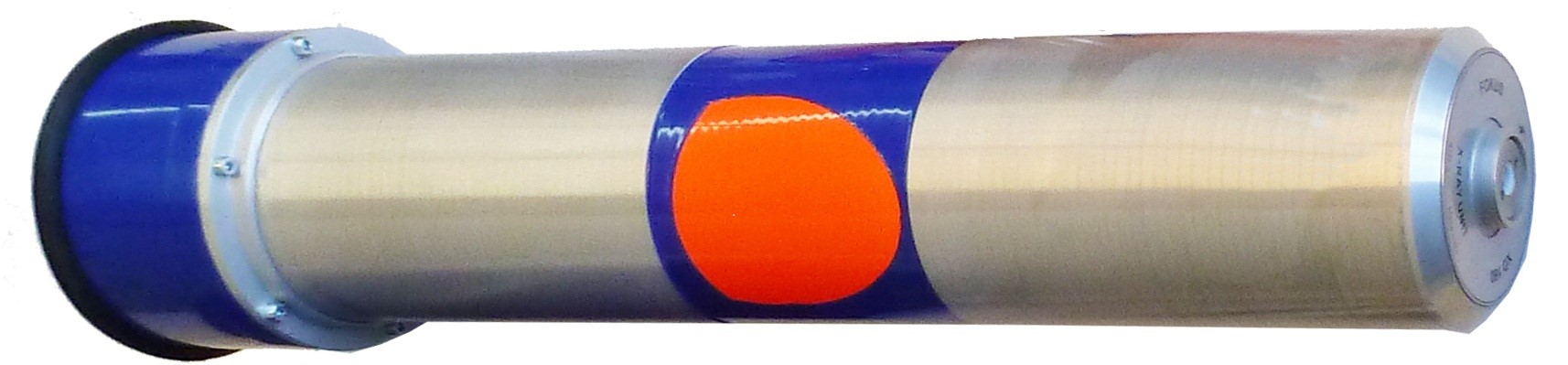

5.1.1 X-Ray Unit “SALUTE 0.3 SBK 160”

DC Anode voltage	50 - 160 kV
DC Anode current	0,1 - 3 mА
Conical X-Ray diagram with angles at the vertex	100° × 80°
The focal spot size	0,8 х 0,8 mm
X-Ray tube type	0.3 BPM 25-150
Weight of X-ray Unit	5,5 kg

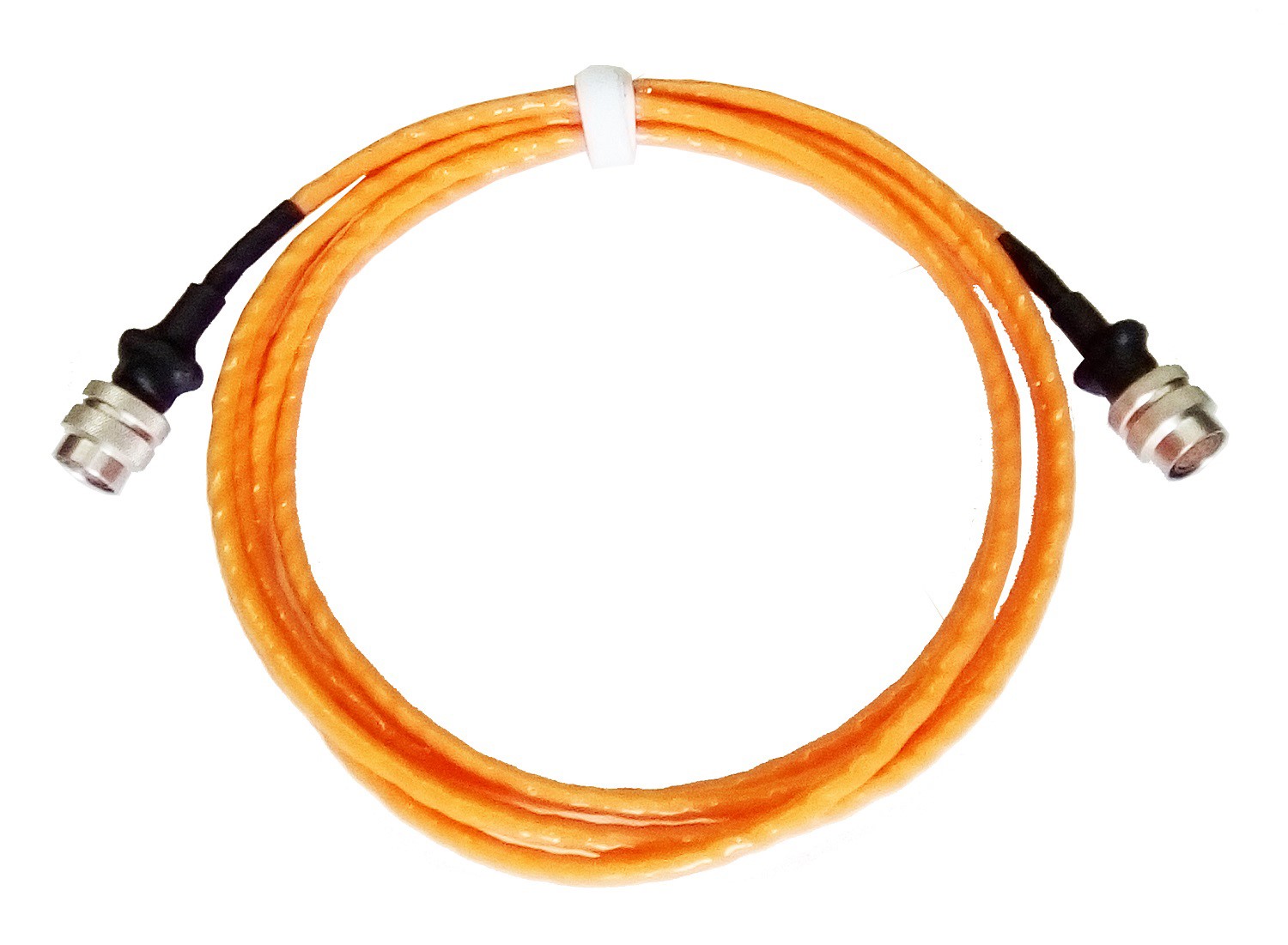

5.3.1 X-Ray Unit Cable (2РМ22-2РМ22) «0,3 SBK 160», «0,3 SBK 200», «0,3 SBK 200 P»

X-Ray Unit Cable (2RM22-2RM22)
For X-Ray Unit "0,3 SBK 160", "0,3 SBK 200", "0,3 SBK 200 P»
Cable length - 5 m, 10 m, 15 m, 20m.
A cable with light indication is available on request.

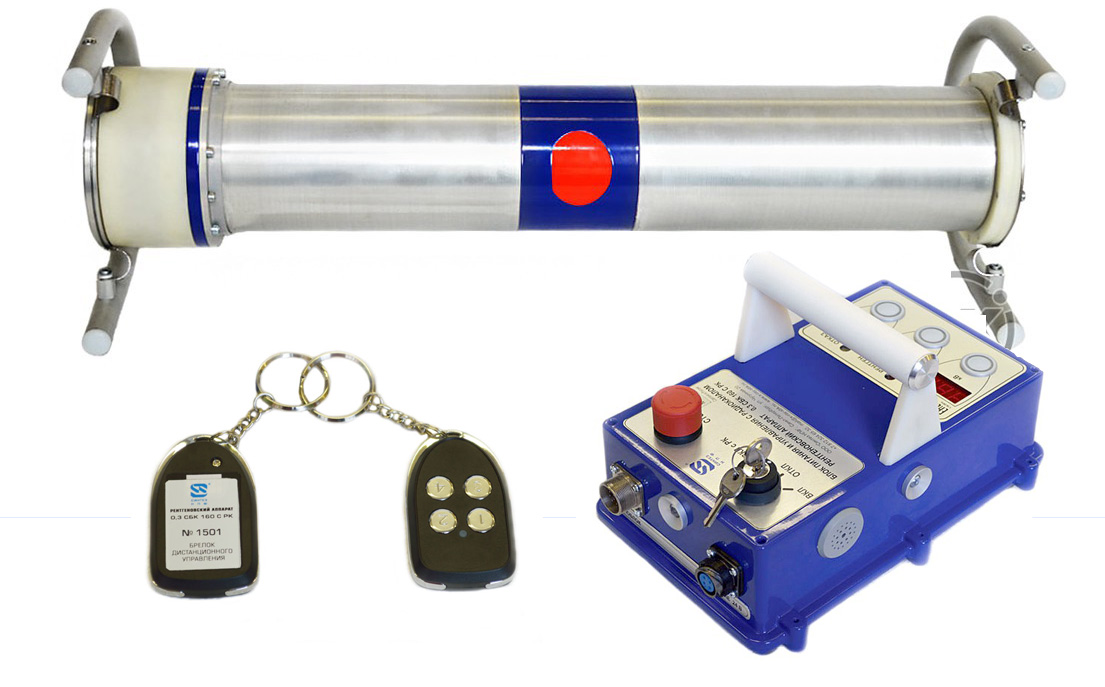

1.3 Аппарат рентгеновский "0,3 СБК 160 С РК" с питанием 24 В

Аанодное напряжение	50 - 160 кВ
Анодный ток	0,1 - 3 мА
Диаграмма излучения - коническая с углами при вершине	100° × 80°
Размер фокусного пятна	0,8 х 0,8 мм
Питание	- 24 В
Дистанционное управление по радиоканалу на расстояниях до	70 м
Масса моноблока	5,5 кг

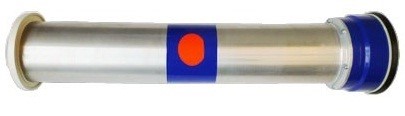

5.1.2 X-Ray Unit “SALUTE 0.3 SBK 200”

DC Anode voltage	100 - 200 kV
DC Anode current	0,1 - 3 mА
Conical X-Ray diagram with angles at the vertex	60° × 40°
The focal spot size	2,0 х 2,2 mm
X-Ray tube type	1.2 BPK 21-200
Weight of X-ray Unit	8,4 kg
